Front Single Fork Tube Rebuild Repair Parts Kit Fits Kawasaki Suzuki Yamaha 0109-210

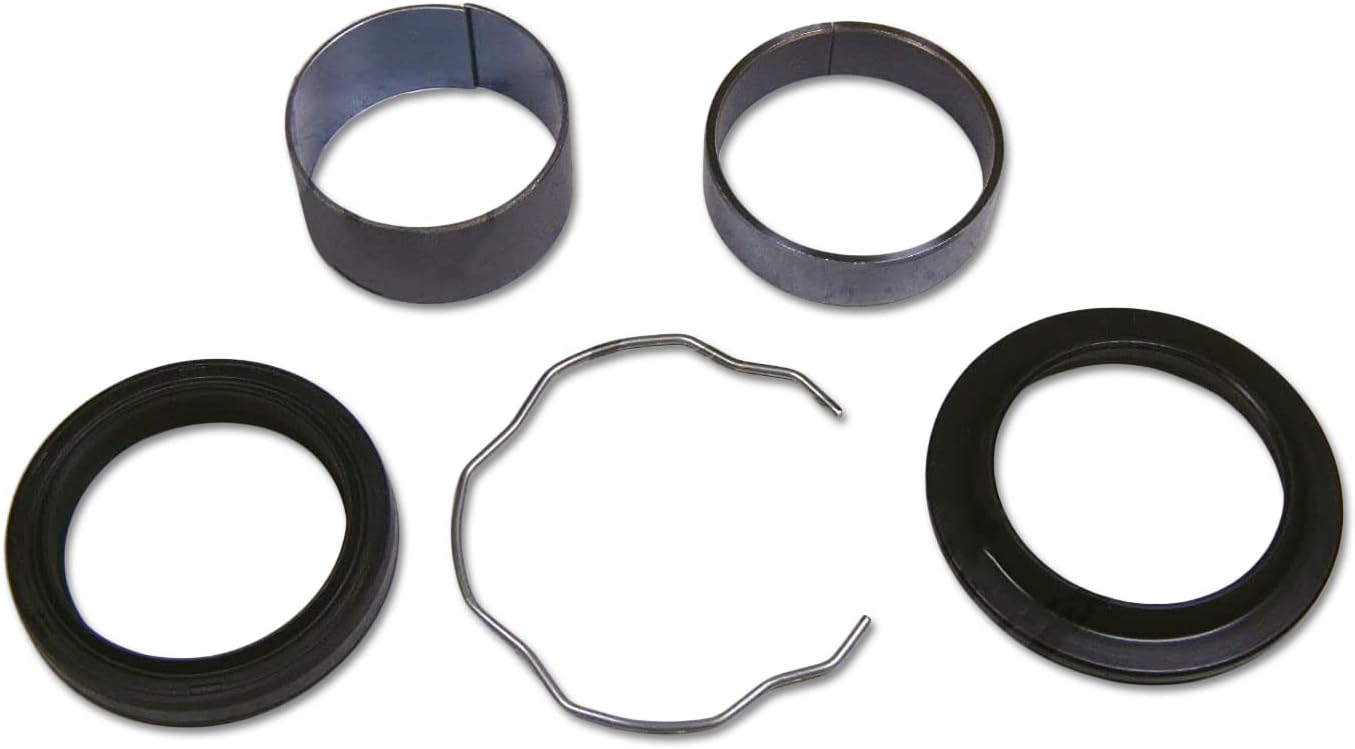

• Contains one (1) Front Fork Damper Oil Seal and Wiper Kit
• Made in Japan of the highest quality materials
• Original Fit - Designed and manufactured to work perfectly with your vehicle
• This kit will only rebuild one (1) fork. If you need to rebuild both forks you will need to purchase two (2) rebuild kits.
• Need Help? - Message us before purchase if you are unsure about the item fitting your vehicle


Fork Seal Dimensions: 41mm x 53mm x 8/9.5mm
Compatible with Kawasaki Part Numbers:
Inner Pipe Slide Bushing: 44065-1086; 44065-1114; 44065-1116
Outer Tube Guide Bushing: 44065-1085; 44065-1115

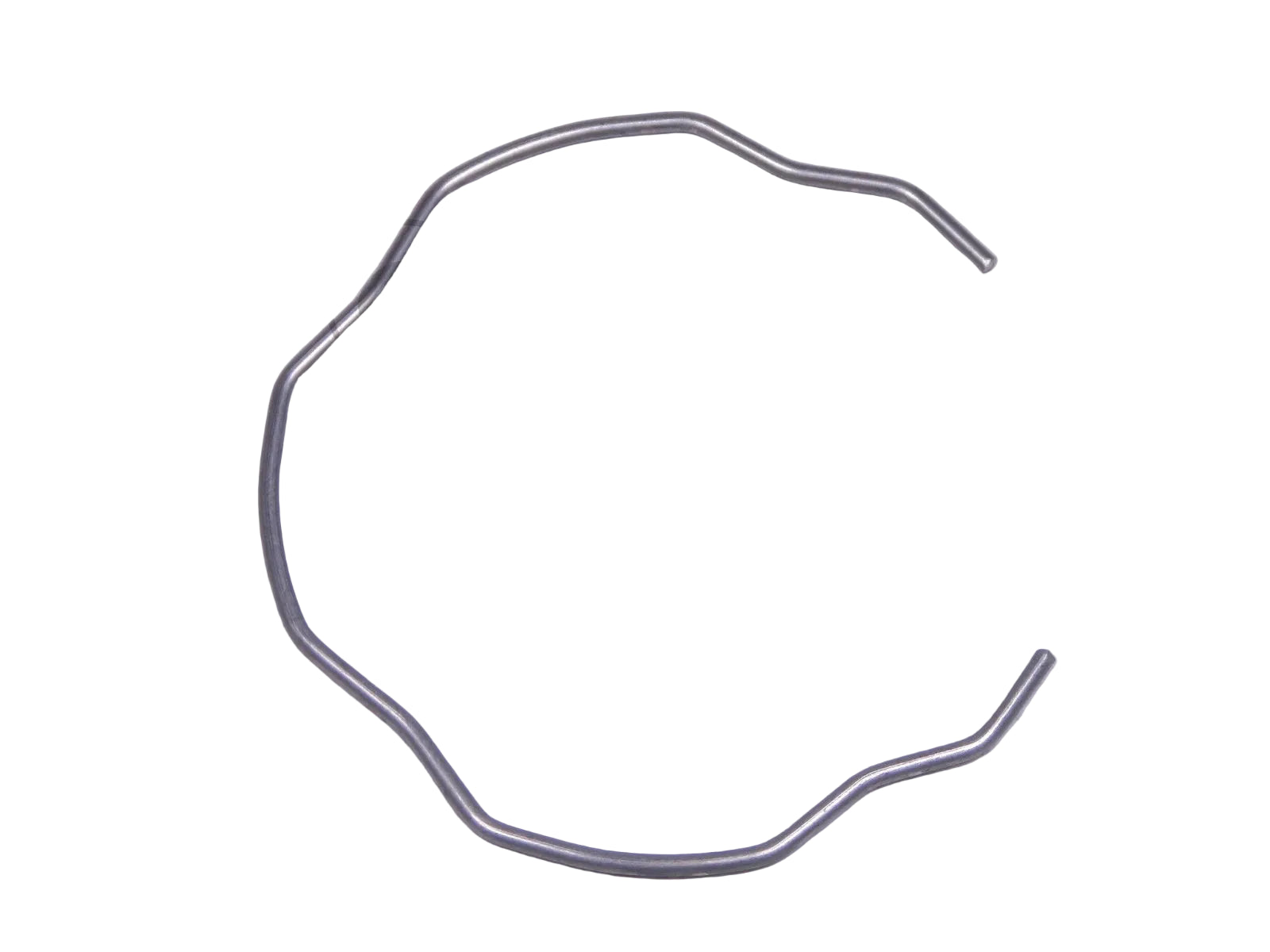

Circlip: 92033-1036

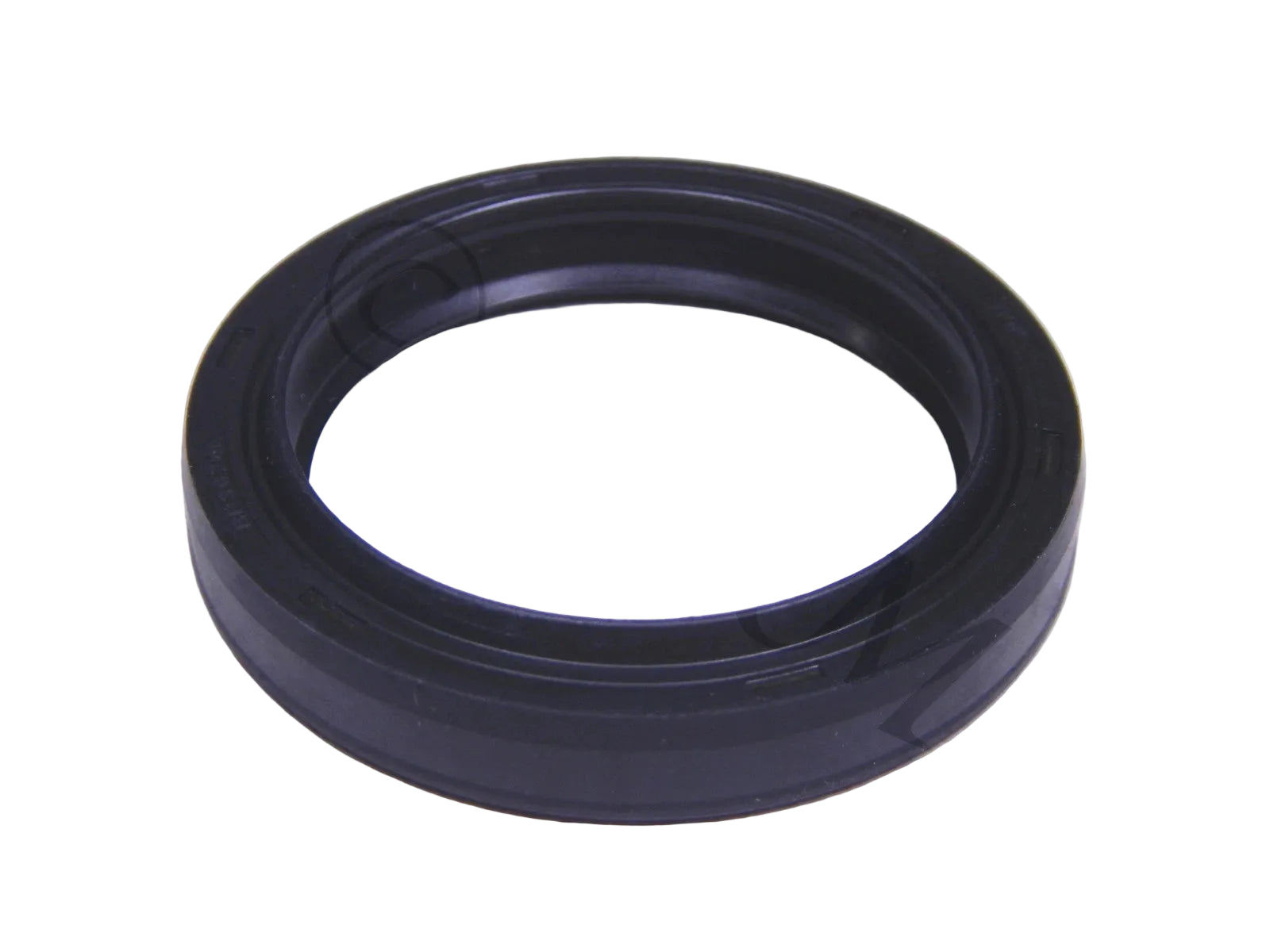

Oil Seal: 92049-1347; 92049-1356

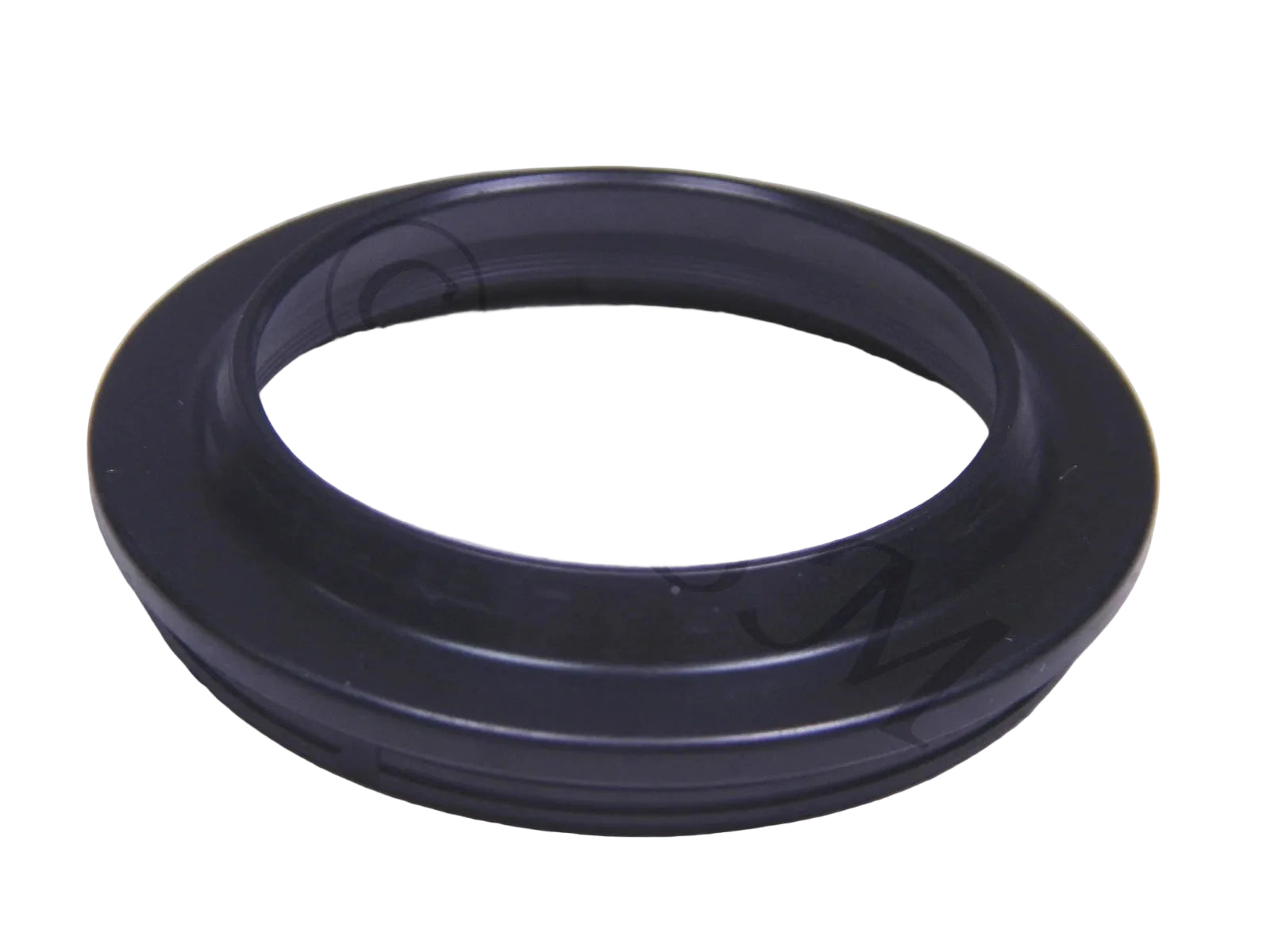

Dust Seal: 92093-1290; 92093-1359
Compatible with Suzuki Part Numbers:
Piston Ring: 51196-24A00
Dust Seal: 51173-05A00; 51173-14F00
Stopper Ring: 51156-49440
Oil Seal: 51153-05A00; 51153-27C20
Slide Bushing: 51167-05A00; 51167-26E10
This Item Will Fit The Following Models:
Kawasaki:
1996 EN500-C1 VULCAN 500 LTD
1997 EN500-C2 VULCAN 500 LTD
1998 EN500-C3 VULCAN 500 LTD
1999 EN500-C4 VULCAN 500 LTD
2000 EN500-C5 VULCAN 500 LTD
1995 ZX600-F1 NINJA ZX-6R
1996 ZX600-F2 NINJA ZX-6R
1997 ZX600-F3 NINJA ZX-6R
1991 ZR750-C1 ZEPHYR 750
1992 ZR750-C2 ZEPHYR 750
1993 ZR750-C3 ZEPHYR 750
1994 ZG1000-A9 CONCOURS 1000
1995 ZG1000-A10 CONCOURS 1000
1996 ZG1000-A11 CONCOURS 1000 (CANADA ONLY)
1997 ZG1000-A12 CONCOURS 1000
1998 ZG1000-A13 CONCOURS 1000
1988 ZX1000-B1 NINJA ZX-10
1989 ZX1000-B2 NINJA ZX-10
1990 ZX1000-B3 NINJA ZX-10
1995 ZX1100-E1 GPz 1100
1996 ZX1100-E2 GPz 1100
1997 ZX1100-E3 GPz 1100
1996 ZX1100-F1 GPz 1100 ABS
Suzuki:
1996-1999 GSF600S BANDIT 600S
1986-1987 GSX-R750
1986 GSX-R750R
1986-1988 GSX-R1100
Yamaha:
1997 YZF600R (YZF600RJ/RJC)
1998 YZF600R (YZF600RK/RKC)
1999 YZF600R (YZF600RL/RLC)
2000 YZF600R (YZF600RM/RMC)
2001 YZF600R (YZF600RN/RNC)
2002 YZF600R (YZF600RP/RPC)
2003 YZF600R (YZF600RR/RRC)
2004 YZF600R (YZF600RS/RSC)
2005 YZF600R (YZF600RT/RTC)
2006 YZF600R (YZF600RV/RVC)
2007 YZF600R (YZF600RW/RWC)
1998 V-STAR 650 CLASSIC (XVS650AK/AKC)
1999 V-STAR 650 CLASSIC (XVS650AL/ALC)
2000 V-STAR 650 CLASSIC (XVS650AM/AMC)
2001 V-STAR 650 CLASSIC (XVS650AN/ANC)
2002 V-STAR 650 CLASSIC (XVS650AP/APC)
2003 V-STAR 650 CLASSIC (XVS650AR/ARC)
2004 V-STAR 650 CLASSIC (XVS65AS/ASC)
2005 V-STAR 650 CLASSIC (XVS65AT/ATC)
2005 V-STAR 650 CLASSIC (XVS650AT/ATC)
2006 V-STAR 650 CLASSIC (XVS65AV/AVC)
2007 V-STAR 650 CLASSIC (XVS65AW/AWC)
2007 V-STAR 650 CLASSIC (XVS65AW-B/AWC-B)
2008 V-STAR 650 CLASSIC (XVS65AXB/AXL/AXCB/AXCL)
2009 V-STAR 650 CLASSIC (XVS65AYS/AYW/AYCS/AYCW)
2010 V-STAR 650 CLASSIC (XVS65AZL/AZR/AZCL/AZCR)
1998 V-STAR 650 CUSTOM (XVS650K/KC)
1999 V-STAR 650 CUSTOM (XVS650L/LC)
2000 V-STAR 650 CUSTOM (XVS650M/MC)
2001 V-STAR 650 CUSTOM (XVS650N/NC)
2002 V-STAR 650 CUSTOM (XVS650P/PC)
2003 V-STAR 650 CUSTOM (XVS650R/RC)
2004 V-STAR 650 CUSTOM (XVS65S/SC)
2005 V-STAR 650 CUSTOM (XVS65T-F/TC-F)
2005 V-STAR 650 CUSTOM (XVS650T-F/TC-F)
2006 V-STAR 650 CUSTOM (XVS65V/VC)
2007 V-STAR 650 CUSTOM (XVS65W/WC)
2008 V-STAR 650 CUSTOM (XVS65X/XR/XC/XCR)
2009 V-STAR 650 CUSTOM (XVS65YL/YCL)
2010 V-STAR 650 CUSTOM (XVS65ZW/ZCW)
2011 V-STAR 650 CUSTOM (XVS65AB/ACB)
2013 V-STAR 650 CUSTOM (XVS65DB/DCB)
2003 V-STAR 650 SILVERADO (XVS65ATR/ATRC)
2004 V-STAR 650 SILVERADO (XVS650ATS/ATSC)
2005 V-STAR 650 SILVERADO (XVS65ATT/ATTC)
2005 V-STAR 650 SILVERADO (XVS650ATT/ATTC)
2006 V-STAR 650 SILVERADO (XVS65ATV/ATVC)
2007 V-STAR 650 SILVERADO (XVS65ATW/ATWC)
2008 V-STAR 650 SILVERADO (XVS65ATXB/ATXCB)
2008 V-STAR 650 SILVERADO (XVS65ATXS/ATXCS)
2009 V-STAR 650 SILVERADO (XVS65ATYB/ATYCB)
2009 V-STAR 650 SILVERADO (XVS65ATYR/ATYCR)
2010 V-STAR 650 SILVERADO (XVS65ATZB/ATZCB)
2005 V-STAR 650 MIDNIGHT CUSTOM (XVS65T/TC)
2005 V-STAR 650 MIDNIGHT CUSTOM (XVS650T/TC)
2006 V-STAR 650 MIDNIGHT CUSTOM (XVS65V-M/VC-M)
2007 V-STAR 650 CUSTOM MIDNIGHT (XVS65W-M/WC-M)
2008 V-STAR 650 MIDNIGHT CUSTOM (XVS65XB/XCB/XBC)
2009 V-STAR 650 MIDNIGHT CUSTOM (XVS65YB/YCB)
2010 V-STAR 650 MIDNIGHT CUSTOM (XVS65ZB/ZCB)
1987 FZR750R (FZR750RT)
1996 YZF750R (YZF750RH/RHC)
1997 YZF750R (YZF750RJ/RJC)
1998 YZF750R (YZF750RK/RKC)
2009 V-STAR 950 (XVS95YB/YL/YR)
2009 V-STAR 950 (XVS95YCB/YCL/YCR)
2010 V-STAR 950 (XVSZB/ZR/ZW)
2010 V-STAR 950 (XVSZCB/ZCR/ZCW)
2011 V-STAR 950 (XVS95AB/AL/ACB/ACL)
2012 V-STAR 950 (XVS95BR/BS/BCR/BCS)
2013 V-STAR 950 (XVS95DB/DW/DCB/DCW)
2014 V-STAR 950 (XVS95ER/ECR)
2009 V-STAR 950 TOURER (XVS95CTYB/CTYR/CTYS)
2009 V-STAR 950 TOURER (XVS95CTYCB/CTYCR/CTYCS)
2010 V-STAR 950 TOURER (XVS95CTZB/CTZG)
2010 V-STAR 950 TOURER (XVS95CTZCB/CTZCG)
2011 V-STAR 950 TOURER (XVS95CTAB/CTAR)
2011 V-STAR 950 TOURER (XVS95CTACB/CTACR)
2012 V-STAR 950 TOURER (XVS95CTBB/CTBL)
2012 V-STAR 950 TOURER (XVS95CTBCB/CTBCL)
2013 V-STAR 950 TOURER (XVS95CTDB/CTDR)
2013 V-STAR 950 TOURER (XVS95CTDCB/CTDCR)
2014 V-STAR 950 TOURER (XVS95CTEB/CTECB)
2014 V-STAR 950 BOLT (XVS95CEB/CEW/CECB/CECW)
1987 FZR1000 (FZR1000T/TC)
1988 FZR1000 (FZR1000U/UC)
1984 FJ1100 (FJ1100L/LC)
1985 FJ1100 (FJ1100N/NC)
2000 V-STAR 1100 CLASSIC (XVS1100AM/AMC)
2001 V-STAR 1100 CLASSIC (XVS1100AN/ANC)
2002 V-STAR 1100 CLASSIC (XVS1100AP/APC)
2003 V-STAR 1100 CLASSIC (XVS1100AR/ARC/AWR)
2004 V-STAR 1100 CLASSIC (XVS11AS/ASC)
2005 V-STAR 1100 CLASSIC (XVS11AWT/AWTC)
2006 V-STAR 1100 CLASSIC (XVS11AWV/AWVC)
2007 V-STAR 1100 CLASSIC (XVS11AWW/AWWC)
2008 V-STAR 1100 CLASSIC (XVS11AWXB/AWXW)
2008 V-STAR 1100 CLASSIC (XVS11AWXCB/AWXCW)
2009 V-STAR 1100 CLASSIC (XVS11AWYG/AWYR)
2009 V-STAR 1100 CLASSIC (XVS11AWYCG/AWYCR)
1999 V-STAR 1100 CUSTOM (XVS1100L/LC)
2000 V-STAR 1100 CUSTOM (XVS1100M/MC)
2001 V-STAR 1100 CUSTOM (XVS1100N/NC)
2002 V-STAR 1100 CUSTOM (XVS1100P/PC)
2003 V-STAR 1100 CUSTOM (XVS1100R/RC)
2004 V-STAR 1100 CUSTOM (XVS11S/SC)
2005 V-STAR 1100 CUSTOM (XVS11T-F/TC-F)
2006 V-STAR 1100 CUSTOM (XVS11V-F/VC-F)
2007 V-STAR 1100 CUSTOM (XVS11W/WC)
2008 V-STAR 1100 CUSTOM (XVS11X/XC/XL/XCL)
2009 V-STAR 1100 CUSTOM (XVS11YR/YCR)
2005 V-STAR 1100 MIDNIGHT CUSTOM (XVS11T/TC)
2006 V-STAR 1100 MIDNIGHT CUSTOM (XVS11V/VC)
2007 V-STAR 1100 CUSTOM MIDNIGHT (XVS11W-M/WC-M)
2008 V-STAR 1100 MIDNIGHT CUSTOM (XVS11XB/XBC/XCB)
2009 V-STAR 1100 MIDNIGHT CUSTOM (XVS11YB/YCB)
2003 V-STAR 1100 SILVERADO (XVS11ATR)
2004 V-STAR 1100 SILVERADO (XVS11ATS/ATSC)
2005 V-STAR 1100 SILVERADO (XVS11ATT/ATTC)
2006 V-STAR 1100 SILVERADO (XVS11ATV/ATVC)
2007 V-STAR 1100 SILVERADO (XVS11ATW/ATWC)
2008 V-STAR 1100 SILVERADO (XVS11ATXB/ATXR)
2008 V-STAR 1100 SILVERADO (XVS11ATXCB/ATXCR)
2009 V-STAR 1100 SILVERADO (XVS11ATYB/ATYL)
2009 V-STAR 1100 SILVERADO (XVS11ATYCB/ATYCL)
1986 FJ1200 (FJ1200S/SC)
1987 FJ1200 (FJ1200T/TC)
1989 FJ1200 (FJ1200W/WC)
1990 FJ1200 (FJ1200A/AC)
1991 FJ1200 (FJ1200B/BC)
1992 FJ1200 (FJ1200D/DC)
1992 FJ1200A ABS (FJ1200AD/ADC)
1993 FJ1200A ABS (FJ1200AE/AEC)
2007 V-STAR 1300 (XVS13AW/AWC)
2008 V-STAR 1300 (XVS13AXB/AXR/AXS)
2008 V-STAR 1300 (XVS13AXBC/AXRC/AXSC)
2008 V-STAR 1300 (XVS13AXCB/AXCR/AXCS)
2009 V-STAR 1300 (XVS13AYB/AYW)
2009 V-STAR 1300 (XVS13AYCB/AYCW)
2011 V-STAR 1300 (XVS13AAB/AACB)
2012 V-STAR 1300 (XVS13ABR/ABCR)
2013 V-STAR 1300 (XVS13ADB/ADCB)
2014 V-STAR 1300 (XVS13AER/AECR)
2007 V-STAR 1300 TOURER (XVS13CTW/CTWC)
2008 V-STAR 1300 TOURER (XVS13CTXB/CTXR/CTXS)
2008 V-STAR 1300 TOURER (XVS13CTXCB/CTXCR/CTXCS)
2009 V-STAR 1300 TOURER (XVS13CTYL/CTYR)
2009 V-STAR 1300 TOURER (XVS13CTYCL/CTYCR)
2010 V-STAR 1300 TOURER (XVS13CTZB/CTZL)
2010 V-STAR 1300 TOURER (XVS13CTZCB/CTZCL)
2011 V-STAR 1300 TOURER (XVS13CTAR/CTACR)
2012 V-STAR 1300 TOURER (XVS13CTBG/CTBL)
2012 V-STAR 1300 TOURER (XVS13CTBCG/CTBCL)
2013 V-STAR 1300 TOURER (XVS13CTDR/CTDCR)
2013 V-STAR 1300 DELUXE (XVS13CTFD/CTFDC)
2014 V-STAR 1300 DELUXE (XVS13CTFE/CTFEC)
