Front Single Fork Tube Fits Honda Kawasaki Suzuki Yamaha 0109-201

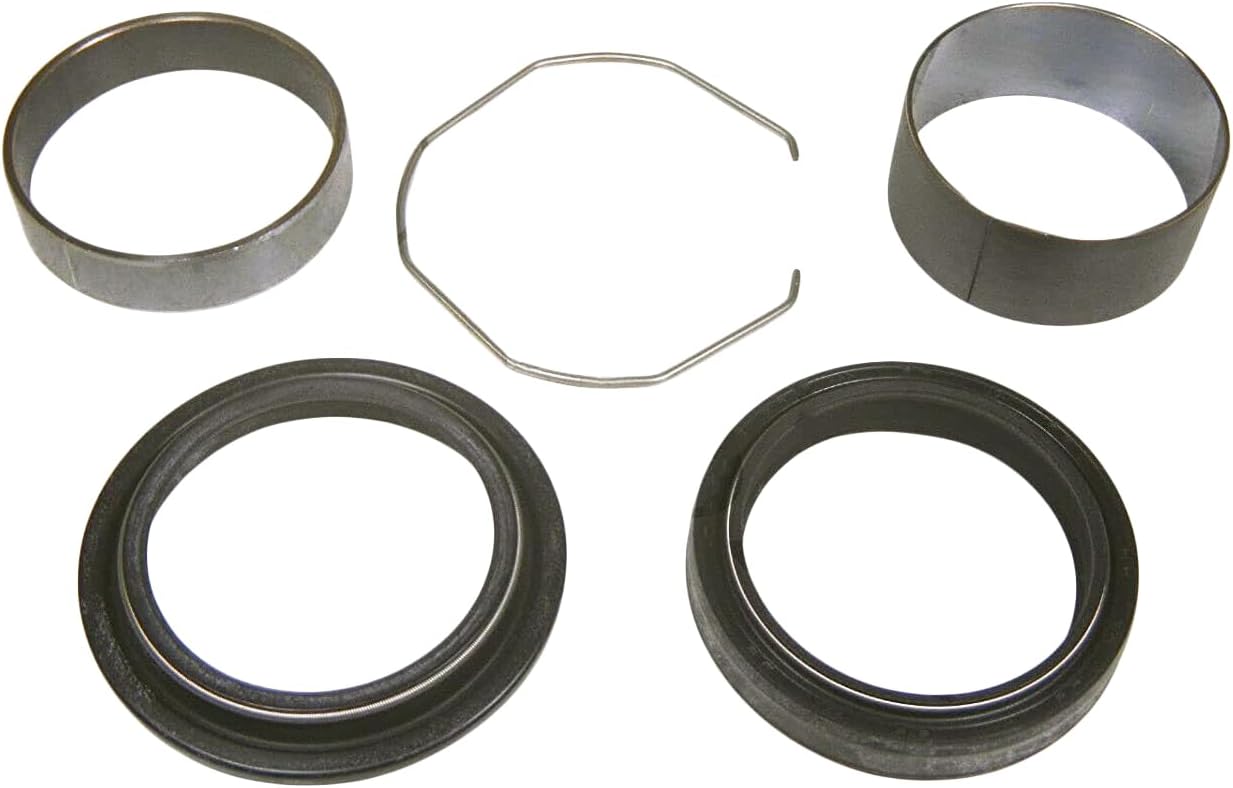

• Contains one (1) Front Fork Damper Oil Seal and Wiper Kit
• Made in Japan of the highest quality materials
• Original Fit - Designed and manufactured to work perfectly with your vehicle
• This kit will only rebuild one (1) fork. If you need to rebuild both forks you will need to purchase two (2) rebuild kits.
• Need Help? - Message us before purchase if you are unsure about the item fitting your vehicle

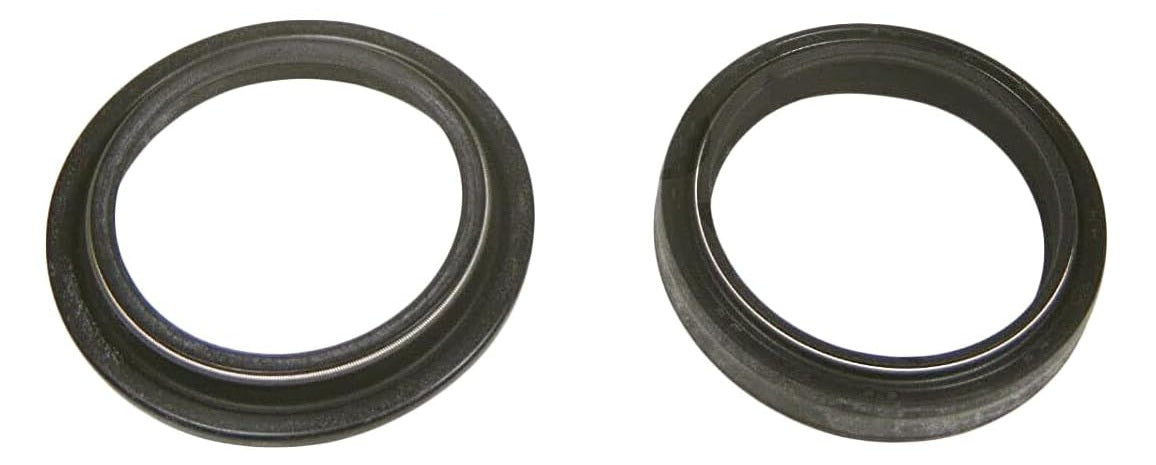

Fork Seal Dimensions: 46mm x 58mm x 9.5/11mm
This item will fit the following part numbers:
Honda:

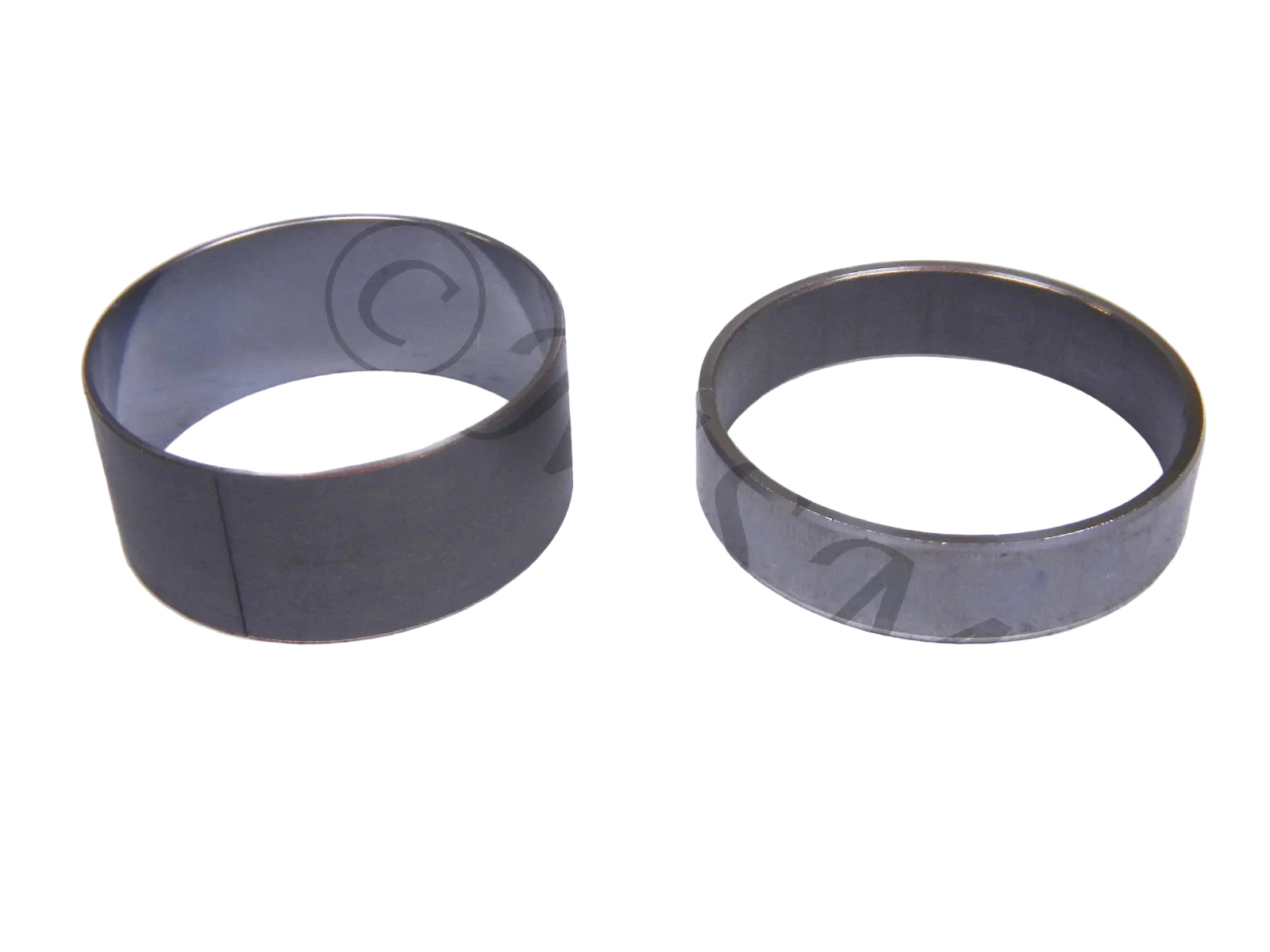

Slide Bushing: 51415-KZ4-J11; 51415-MAC-741
Guide Bushing: 51414-KZ4-J11; 51414-MAC-741

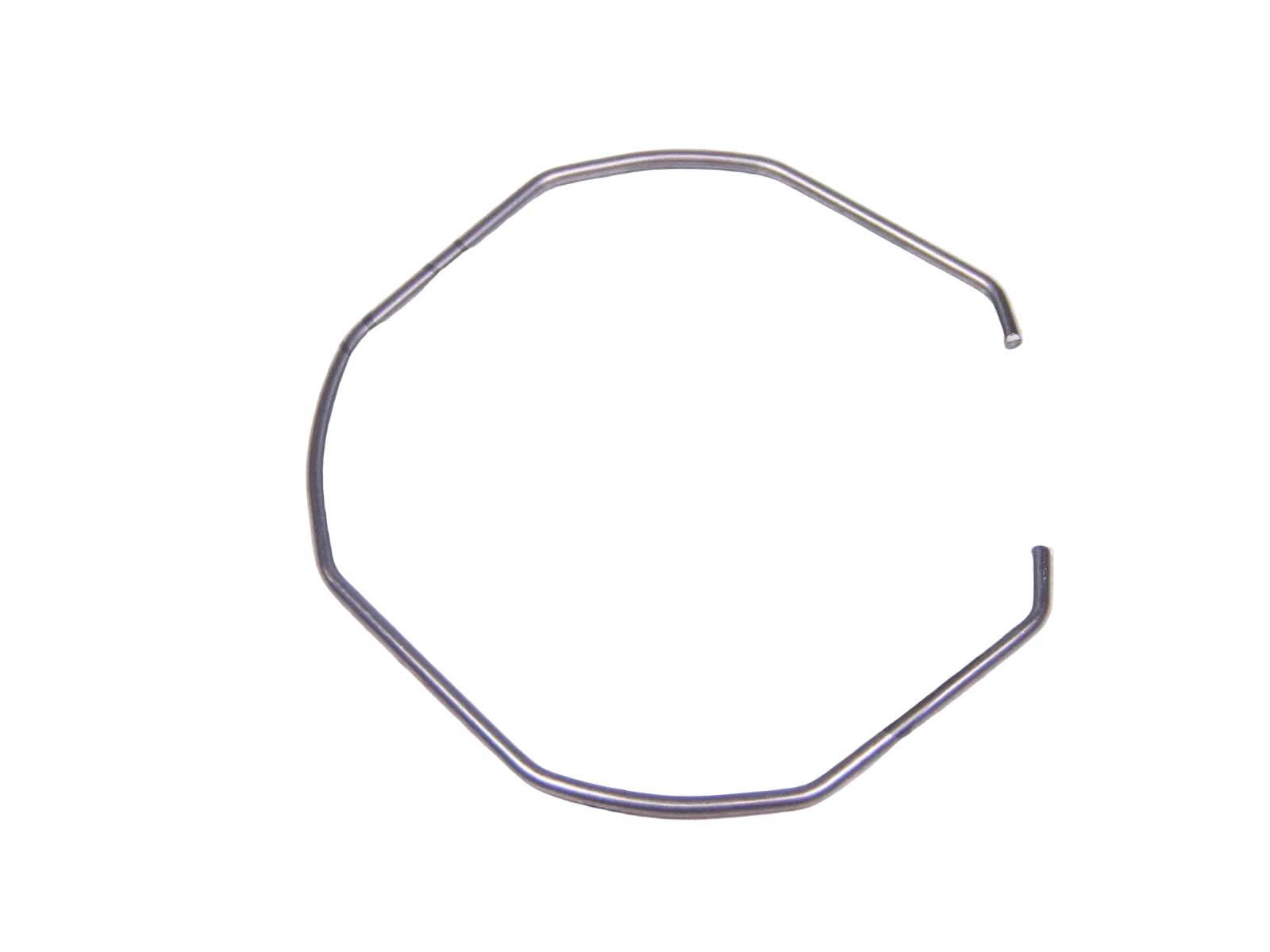

Stopper Ring: 51447-MAC-741
Seal Set: 51490-KZ4-J21; 51490-MAC-741
Kawasaki:
Inner Pipe Piston: 44018-1059; 44065-1129
Bushing: 92028-1755; 44065-1130
Oil Seal: 92049-1440; 92049-1504
Snap Ring: 92033-1264
Outer Seal: 92093-1392; 92093-1525
Yamaha:
Front Fork Piston: 4SS-23171-L0-00; 5ET-23171-L0-00
Metal Slide 1: 4SS-23125-L0-00; 5ET-23125-L0-00; 5TJ-23125-50-00
Snap Ring: 4SS-23153-L0-00
Oil Seal: 4SS-23145-L0-00; 5DH-23145-L0-00; 5ET-23145-L0-00; 5UN-23145-L0-00
Dust Seal: 4SS-23144-L0-00; 5HD-23144-L0-00
This item will fit the following models/years:
Honda:
1997-2007 CR125R
1996 CR250R
1996-2001 CR500R
Kawasaki:
1996 KX125-K3 KX125
1997 KX125-K4 KX125
1998 KX125-K5 KX125
1999 KX125-L1 KX125
2000 KX125-L2 KX125
2001 KX125-L3 KX125
1996 KX250-K3 KX250
1997 KX250-K4 KX250
1998 KX250-K5 KX250
1999 KX250-L1 KX250
2000 KX250-L2 KX250
2001 KX250-L3 KX250
1997 KX500-E9 KX500
1998 KX500-E10 KX500
1999 KX500-E11 KX500
2000 KX500-E12 KX500
2001 KX500-E13 KX500
2002 KX500-E14 KX500
2003 KX500-E15 KX500
2004 KX500-E16 KX500
Suzuki:
2001-2003 RM250
Yamaha:
2001 WR250F (WR250FN)
2002 WR250F (WR250FP)
2003 WR250F (WR250FR)
2004 WR250F (WR250FS)
1998 WR400F (WR400FK)
1999 WR400F (WR400FL)
2000 WR400F (WR400FM)
2001 WR426F (WR426FN)
2002 WR426F (WR426FP)
2003 WR450F (WR450FR)
2004 WR450F (WR450FS)
1996 YZ125 (YZ125H1)
1997 YZ125 (YZ125J1)
1998 YZ125 (YZ125K1)
1999 YZ125 (YZ125L1)
2000 YZ125 (YZ125M1)
2001 YZ125 (YZ125N1)
2002 YZ125 (YZ125P)
2003 YZ125 (YZ125R)
1996 YZ250 (YZ250H1)
1997 YZ250 (YZ250J1)
1998 YZ250 (YZ250K1)
1999 YZ250 (YZ250L1)
2000 YZ250 (YZ250M1)
2001 YZ250 (YZ250N1)
2002 YZ250 (YZ250P)
2003 YZ250 (YZ250R)
2001 YZ250F (YZ250FN)
2002 YZ250F (YZ250FP)
2003 YZ250F (YZ250FR)
1998 YZ400F (YZ400FK)
1999 YZ400F (YZ400FL)
2000 YZ426F (YZ426FM)
2001 YZ426F (YZ426FN)
2002 YZ426F (YZ426FP)
2003 YZ450F (YZ450FR)
